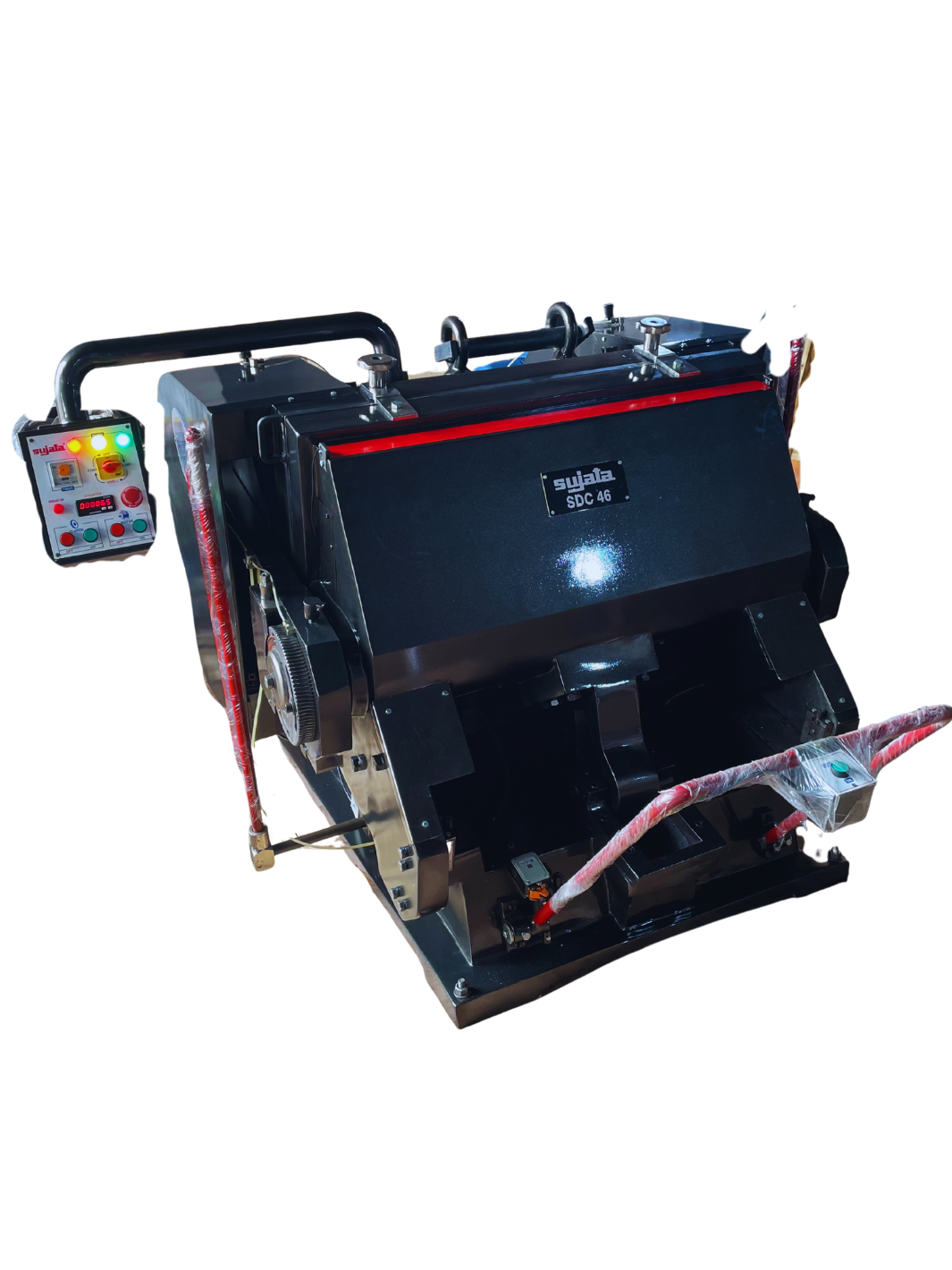

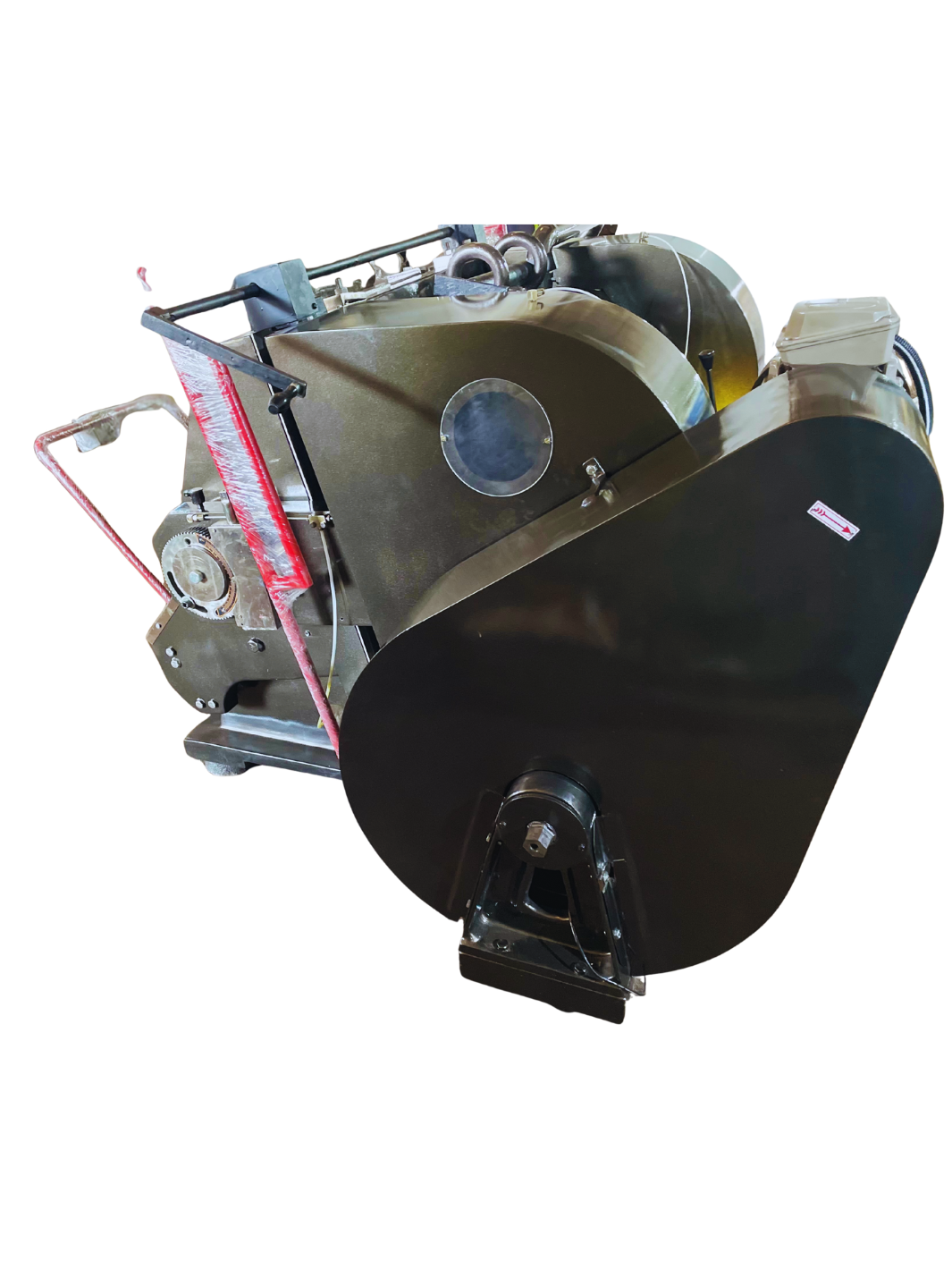

Platen Die Cutting Machines

Sujata Platen Die cutting machines are the market standard in Die Cutting machine with presence in 700 Indian cities and 60 countries.

If there was ever a poster child for Make in India, Sujata Platens would be it. Known for their versatility, premium quality as well as durability they are a crowned jewel in our machines. Sujata Platens are considered the gold standard in Die Cutting Category and are deployed at every major packaging manufacturer in India.

Having exported them in over 4 continents, it is a must have for every packaging house in India or the world.

Sujata Platens are particularly designed for die cutting, scoring & creasing work on paper, linoleum, card board, corrugated board, fiber board, cork, leather, PVC materials among other applications.

Proprietary features:

1. Double S Cam (proprietary IP Design) for enhancing durability of moving platen as well as producing superior quality folding cartons
2. Inhouse Casting to improve product quality and introduce our proprietary platen design for improve punched tonnage and durability
3. Sujata's proprietary Platen support technology for superior durability
4. Larger Bore sizes and hence larger shaft diameter to improve platen punch and durability
5. Vertically integrated process from casting to quality assurance
6. Larger driving wheels of platens cast under our two owned casting units
7. Strong build, average weight for a specific size is ~40% greater than market standard. Superior weight helps the product deliver a long and reliable life
8.  5 Decades of R&D and continuous improvement to build a world class product
9.  Censor Safety Brake for moving platen
10.  Low maintenance with high durability

Standard features

1. Electro magnetic clutch and brake’
2. Single –Dwell facility
3. Censor Safety Brake for moving platen
4. Wrap Around Safety device –foot magnetic brake as optional
5. Mild /National Steel Make ready as standard  (SS and Hardened Grounded plate as optional)
6. Adjustable chase for die fixture
7. Automatic impression counting
8. Manual Lubrication pump (Auto lubrication with timer and synchronization as optional)

Operational Manual

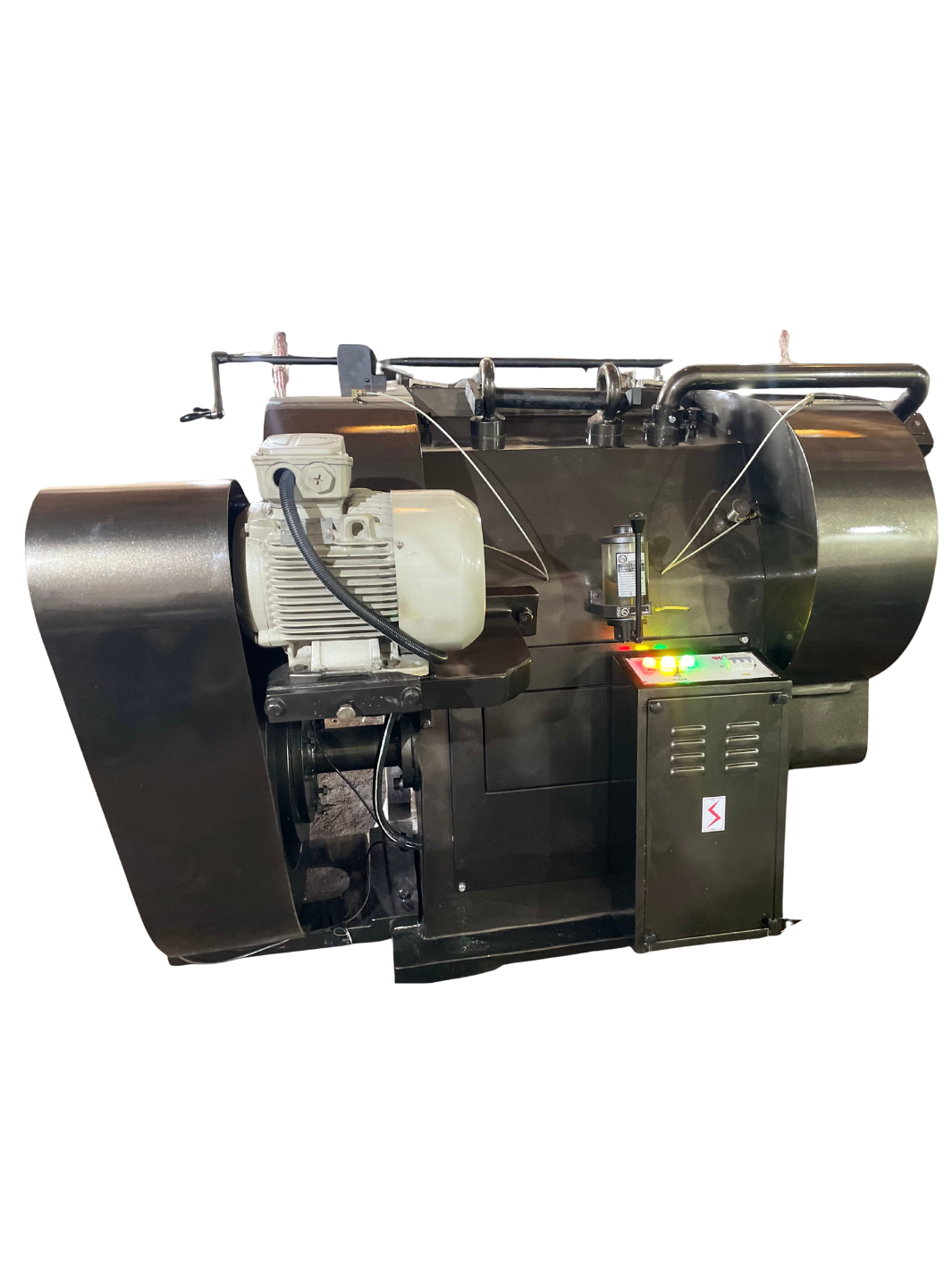

Drive Mechanism

The platen is driven from ball bearing mounted shaft through high speed
double helical gears running in oil bath and protected by guard.
Main gear shaft and connecting arm are mounted on bronze bushes.
The reduction gear shaft is made of hardened high quality steel .Lubricated counter
pressure elements prevent the gears from deviating under the work pressure.

Impression Adjustment

Quick and simple adjustment of impression is made through two eccentric bushes and
the amount of impression can be easily read off on a graduated scale.
A key for impression adjustment is also provided as a tool.
New Worm gear system for impression adjustment is available in all export model
Machines , This system is easy and much user friendly for quick impression
adjustment with a key provided with the machine as service tool. Please must
Loose the lock before moving the eccentric for impression adjustment.

Single/Dwell Timing Device

This timing device can be set to give a variable period from o to 30 seconds .During
this time the moving block i.e. platen remains stationery in the open position before
automatically resuming motion at the end of set dwell period.

Mode of Movement of Platen

The mode of movement of platen can be set in three position through a rotary
switch provided on operation panel:
a) Single impression: In this mode platen will stop after every impression and
will not start again until the operator pushes the clutch on.
b) Dwell timing device: As stated above

Continued Operation

Platen will move continuously on this mode and stop only when the brake is applied.
A LIMIT SWITCH IS FITTED AT BOTTOM SIDE THE LEVER MUST TOUCH THE LIMIT SWITCH TO ENSURE WORKING OF TIMER

Automatic impression counter:

The impression counter allows an accurate check to be kept on the number of
impressions made by the machine.
A LIMIT SWITCH IS FITTED AT BOTTOM SIDE THE LEVER MUST
TOUCH THE LIMIT SWITCH TO ENSURE WORKING OF COUNTER.

Electro-Magnetic Clutch and brake

Electro- magnetic clutch & brake enables push button control of the machine for
easy and efficient operation. Complete safety is ensured by full electrical interlocking
Electrical synchronization of both clutch & the brake eliminates the possibility of time
lag or over-lag between driving and braking .

ADJUSTMENT OF AIR GAP BETWEEN CLUTCH/BRAKE COIL & CENTRE PLATE

DURING RUN OF MACHINE USER CAN FACE PROBLEM OF INCREASE/DECREASE GAP BETWEEN CLUTCH/ BRAKE COIL AND CENTRE PLATE. THIS GAP SHOULD BE 0.10 MM.THIS GAP CAN BE INCREASED /DECREASEDBY ADJUSTING SCREWS IT IS ADVISABLE TO USE GAUGE TO MEASURE THE GAP REQUIRED. WHEN THE SOUND IS INCREASED WHILE BRAKINGGAP SHOULD BE CHECKED AND ADJUSTED.

Safety :

All moving parts are protected by safety guards. A special feature is the patented
guards which protects operator from the moving block (platen) If any object
come between the moving block (platen) and this guard a slight backward movement
of the guard will occur stopping the moving block (platen) immediately and isolating
the starting mechanism . Until the guard is moved forward by hand the machine
remains dead and isolated from any attempt to actuate it through the starting
mechanism.
LIMIT SWITCH IS FITTED AT THE BOTTOM OF GUARD AND THIS
LIMIT SWITCH MUST TOUCH THE GUARD
Now Days the Hand Brake is Replaced By The Sensors fitted on the Platen ,these sensors
stops the Platen if any object comes in between the Receiver and The Transmitter .
THIS IS AN OPTIONAL ATTACHMENT AND AVAILABLE ONLY ON
REQUEST AT ADDITIONAL COST

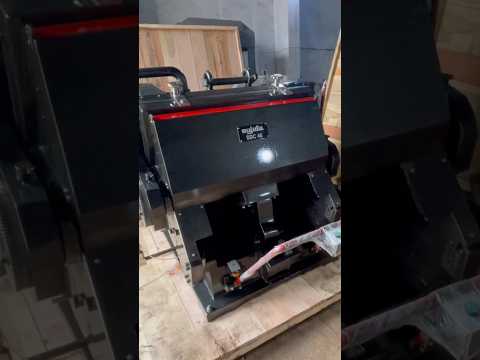

Installation

Sujata die cutting creasing embossing press leaves the factory duly packed
in one wooden case. Unload the machine by Crain only therefore a hook is provided
at the top of the machine. Pallet Crain can also be used for un loading.
Machine must be installed on a levelled floor and level must be checked
with level checking instrument. Before giving the current to the main
rotate the main shaft with the help of handle provided with machine as
tool. The power /voltage and cycles must be checked before connecting
the machine to main.
Before giving impression must be sure that the gear key and other parts, bolts
are properly tighten . Don’t increase the impression more than one step once.

Operation of machine by power:

Before giving the main connection to the machine must check that all connection
is properly connected and voltage not less than 380 v Ac 3 phase .After connection
check the three indicator lamps on control panel for 3 phase line, then check the main
pulley is free and if so start the motor and wait for few second and let the motor
move in regular speed. Then keep the rotary switch on s.impression mode and after
that impression is all right, machine can be run on any desired mode as per requirement
of job.
Note ; We offer our all export model machines to be wired for 220 v 3 phase for
Certain countries if the buyer specify his requirement at the time of order ,other
Wise standard wiring of 440 –3 phase will be done
Don’t start the clutch button before starting the machine .Always first start the main motor and then clutch on to move the platen .Brake will be applied when the clutch off push button is pressed or the patent guard /front guard and trip bar is pressed.

DURING THE RUNNING OF MACHINE OWNER CAN FACE
SMALL PROBLEM WHICH CAN BE SOLVED EVEN BY THE
OPERATOR ,

Lubrication

A lubrication pump pump is provided for the centralization of lubrication to all
vital parts. Fill the tank with sufficient oil in tank of S cam situated in front of machine
this place is just below of moving block and s cam must be dipped in oil .
Lubrication pump (S Cam ,Oil Tank below this cam must
be full of oil while running of press)
Oil bath is also provided in double helical gears and always keep these gears
dipped in oil .

Speed:

Impression per hour can be increased to decreased by changing motor pulley
but it is advisable to run the machine note more than 1000to 1500 impression per
hour for small sizes and 600 to 1000 IPH for big sizes
in continued mode for easy handling of jobs and safety .

Sujata Platen die cutting machines are offered in various models and facilities to use it for multiple jobs we categorize the machines in following :

SDC- CUTTING AND CREASING PRESSES: USED FOR CUTTING ,CREASING ,HALF CUTTING, EMBOSSING WORK BY USING DIES ,EMBOSSING BLOCKS ETC.

SDC JUMBO- SERIES REPRESENT BIG SIZE MODELS OF DIE CUTTING FOR CORRUGATING INDUSTRY, DISPLAY INDUSTRY, FORM CUTTING AND OTHER LARGE FORMAT JOBS.

SHF-  SHF SERIES REPRESENTS  ALL DIE CUTTING FUNCITIONS AS WELL ADDITIONALLY HOT FOILING PRESS FOR PRINTING BY USING BLOCKS AND PRINTING FOILS TO MEET THE DEMAND OF FOIL PRINTING ON PAPER, BOARD AND VARIOUS SIMILIAR TO PAPER

SHF PLUS- IS AN TOP MODEL PRESS CAN BE USED FOR NORMAL DIE CUTTING, FOILING AS WELL AS HEATED DIE JOBS.

HEATED PLATEN MACHINE MEANS THE PLATEN WHERE A HEATER IS PERMANENTY FITTED, IN NORMAL FOILING PRESS AND DIE CUTTING PROCESS HEATER IS CHASE AND ALTERNATELY REMOVABLE WHILE CHANGING JOBS TO DIE CUTTING BUT IN HEATED PLATEN SOLVE THIS ISSUE AND SAME PLATEN HEATING AND COLD PROCESS CAN CONTINUE WITHOUT INTERRUPTION .

WHILE MANUFACTURING THE HEATED PLATEN IT IS IMPORTANT FOR US TO COVER THE DISTANCE PLATEN MOVING WITH NORMAL RULE DIE AND LESS HEIGHT HEATED DIES AND BLOCK TO COVER THE OPTIONS MACHINE ECCENTRIC IS WIDELY OPENED AND MOVE PLUS TO MINUS FREQUENTLY BY OPERATOR TO ADJUST THE GAP BETWEEN RULES DIE AND BLOCKS , IT ACCOMODATE BOTH 23.799 MM RULES AS WELL AS 4 MM HEATED DIES , THIS FEATURES MAKE THIS MACHINE AN USER FREINDLY PRODUCT. THESE MACHINES ALSO SUPPLIED WITH OPEN AND CLOSE DWELL FUNCTION.

Sujata Hot Foil Attachment is considered a market standard today with largest and most seasoned deployed base in the Indian subcontinent. It has a rich legacy and unparalleled R&D record of over 45 years with presence in over 60 countries and all 700 major Indian cities.

Sujata Hot foil attachment is used for hot foil or leaf printing on paperboard. Silver, gold foil printing, hot embossing, de embossing, die cutting, creasing, dry embossing, punching with high precision can be achieved by this attachment in . Sujata Hot Foil Press is known for its durability, accuracy and consistency.

Sujata Hot Foil Attachment is suitable for Sujata Platen Die Cutting Machines but can also be applied for other platen die cutting machines after a short technical discussion with our team.

Sujata Hot Foil Attachment

    Heater Size:  As Per Platen Size (industry standard is typically 20*30 inches)

     Chase Size: As Per Platen Size

Features:-

• Hot Foil Printing Attachment with Facility to Run Two Foil Units Fitted with
  • 2 Stepper Motors
  • Foil Setting Computer Control for Micro adjustment

With standard accessories

• Two Pull
• Control Panel with temperature control
• Computer control timer for accurate settings
• Stepper Motors
• Heater size: 20"*30"

Optional accessories:

1) Three Pull Design

2) Larger Heater Size

3) Custom Chase size for Platens other than Sujata Platen Die Cutting Machine

Please note: Prices are just for Attachment and not for the hot foil die cutting machine.

SDC PLUS -Die Cutter Cum Creaser WITH Full Heated Platen

Sujata SDC Plus series is powered by our proprietary Heated Platen Technology that allows entire area of stationary platen to be converted into heated platen. It allows for ease in changing jobs as well as powers the machine to do creasing and cutting on heavy duty jobs like PET material and Plastic based packaging.

In additional to normal die cutting machine 'Salient Feature

• Full Heated Stationary Platen
• Digital temperature controller
• Heating plate with holes and threads
• Close Dwell System

Full heated platen machines which can be used for normal Die cutting as well for hot die cutting for cutting, creasing plastic boxes and other Plastic products , these machines are wide opens to give additional opening space. To stationery and moving platen to accommodates both type of dies from 1/4"(equal to standard hot dies and hot printing block to 23.799 mm (equal to standard cutting rule height).

 Process to make transparent PVC box on heated platen die cutter and creaser SDC PLUS

• Dies must be heat transformation to Cutting creasing rules
• Temperature 100-120 F
• Use close and open dwell
• Making of dies :-
• Traditional : wooden die from back to be cut like it’s rule give touch to heater
• Modern ways : magnesium dies or metal dies if available
• Foiling process : by fixing metal blocks
• Embossing process : using mail and female metal blocks

Sujata Complete Die Cutting Machine- Sujata SHF Plus series is powered by our proprietary Heated Platen Technology that allows entire area of stationary platen to be converted into heated platen. It allows for ease in changing jobs (from hot foil to die cut or vice versa) as well as powers the machine to do creasing and cutting on heavy duty jobs like PET material and Plastic based packaging.

Sujata Complete Die Cutting is 4 in 1 machine suitable for:

1. Die Cut and Crease any kind of paperboard
2. Hot Foil, Cold Emboss, Leaf, De-emboss and Hot Emboss on materials
3. Die Cut and Crease Plastic and PET Materials
4. Die Cut Composite Boards, Puzzles, MDF, Cake Base Millboard and so on

SHF Plus allows easy transition from die cut to hot foil without need to remove the chase and add a heavy chase with heater by accessing our proprietary heated platen technology.

In additional to normal hot foiling machine 'Salient Feature

• 2 Pull Hot Foil Attachment
• Digital timer for foil pulling with jumping facility.
• Heating plate with holes and threads
• Three zone heater.
• Close Dwell System

Optional:

• Additional pull/timer

Further new models are offered with Plus features 2/3 pull, full heated platen machines which can be used for normal Die cutting as well for hot die cutting for cutting, creasing plastic boxes and other Plastic products , these machines are wide opens to give additional opening space. To stationery and moving platen to accommodates both type of dies from 1/4"(equal to standard hot dies and hot printing block to 23.799 mm (equal to standard cutting rule height).

Process to make transparent PVC box on heated platen die cutter and creaser SHF PLUS

• Dies must be heat transformation to Cutting creasing rules
• Temperature 100-120 F
• Use close and open dwell
• Making of dies :-
• Traditional : wooden die from back to be cut like it’s rule give touch to heater
• Modern ways : magnesium dies or metal dies if available
• Foiling process : by fixing metal blocks
• Embossing process : using mail and female metal blocks

Sujata Jumbo Die cutters are also offered with a wide range of models and sizes to meet the demand of corrugating industry, display industry and to meet demand of various large size of die cutting.

Die cutters combine flexibility and diverse application with durability and low maintenance. As such it is a favorite in packaging industry with ability to precisely shape packaging from plastic to paper to cardboard. Its high speed, simplicity and low space requirements make it a ubiquitous presence all over the world.

These die cutters are offered with special features of double “S” cam in selected jumbo models, auto lubrication and operator’s walk way and also the optional features i.e. plate lifter, adjustable chases with movable bars and various safety features to make the press user’s friendly.

These Jumbo presses are very Sturdy in constructions and designed to provide extra tonnage to meet Demand of large scale die cutting jobs. As such they have been a delightful mainstay for packaging manufacturers for pharma, beverages (including alcoholic), consumer durables, food (apple and pizza boxes) and auto ancillaries.

Proprietary features:

1. Double S Cam (proprietary IP Design) for enhancing durability of moving platen as well as producing superior quality folding cartons
2. Strong build, average weight for a specific size is ~40% greater than market standard. Superior weight helps the product deliver a long and reliable life
3. 5 Decades of R&D and continuous improvement to build a world class product
4.  Censor Safety Brake for moving platen

Sujata Die cutter with hot foil attachment is used for hot foil or leaf printing as well as die cutting on paperboard. Silver, gold foil printing, hot embossing, de embossing, die cutting, creasing, dry embossing, punching with high precision can be achieved by this machine. Sujata Hot Foil Press is known for its durability, accuracy and consistency.

SHF is innovation of modern printing and packaging industry. It is at the heart of folding cartons industry. It meets the demand of foil printing on mono-cartons in industries of medicines, cosmetics, garments, smartphones, electronics, sarees , food and other paper products like book titles, greeting cards, presentations  cards, wedding cards and religious books.

Addressing the demand of modern world SHF series full fill demand of national and international users in huge way and mark its presence at every corner where printing is done with the time these machines has added exclusive features of foil timing facility with computer arrangement and stepper drive to minimize the wastage of foil and full usage of foil film.

Features at a glance:

• Specially designed heavy duty heater with single and multiple Zones options
• Opening and closing dwell facility as optional and 2,3,4 pull options for foil units
• Standard model of machine is supplied with 2 pull system but 3&4 pull models are also available as options
• Holed heating plate with aluminum sheet additional covering to facilitate both options of foil by fixing with bolt and sticking with adhesive .
