Name: Sujata Programmable Paper Cutting Machine
Brand: Sujata
Price: 925000.0 INR
Availability: InStock

Sujata Programmable Paper Cutting Machine

Sujata Programmable Paper Guillotine Machine

Sujata Programmable Hydraulic Paper Cutting Machine

Sujata Programmable Fully Auto Cutting Machine

Sujata Hydraulic Paper Cutting Machine SPG 95

Sujata Programmable Paper Guillotine MachineSujata Programmable Paper Guillotine Machine

Sujata Programmable Paper Cutting Machine

Rs. 925,000.00

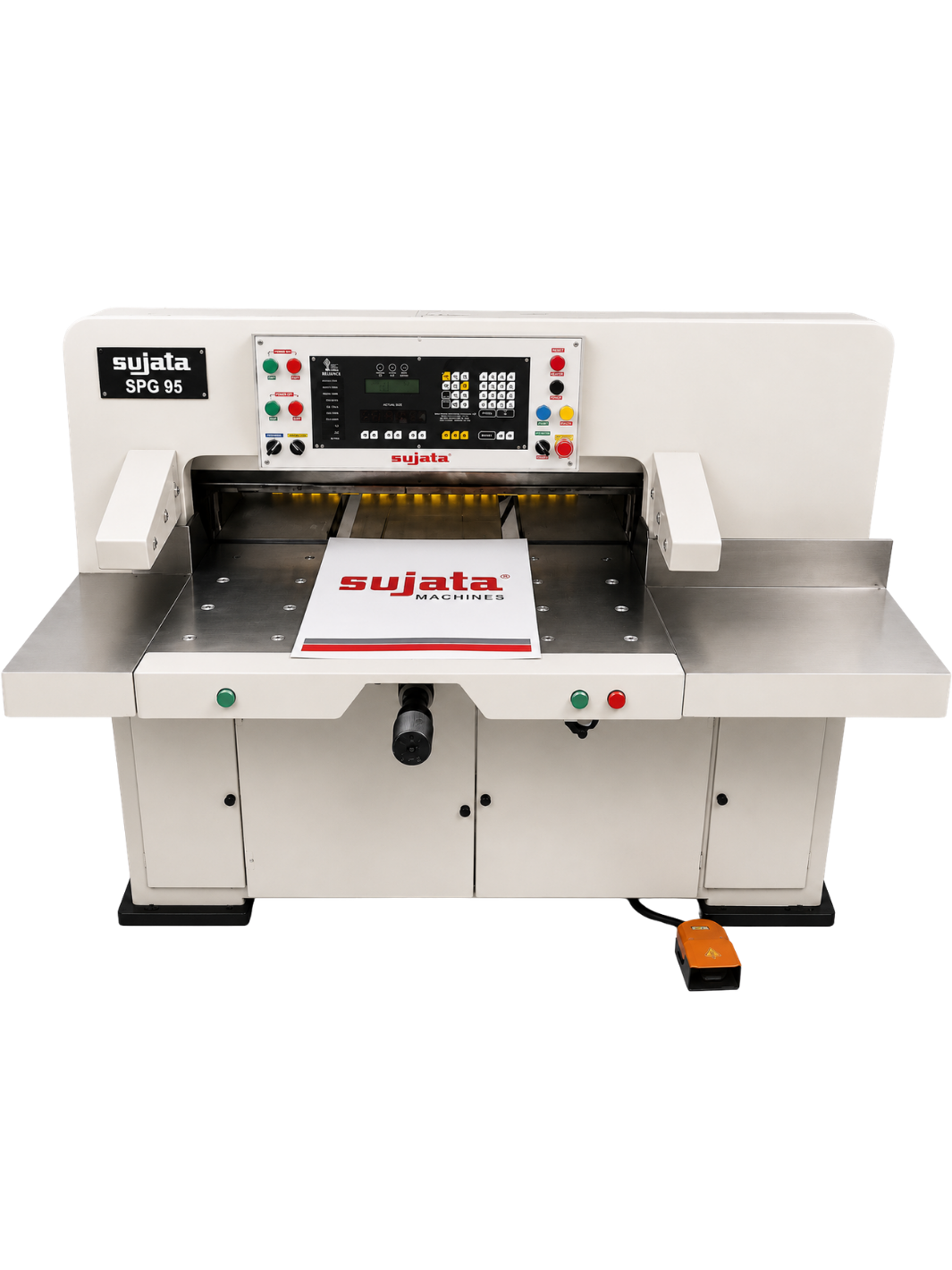

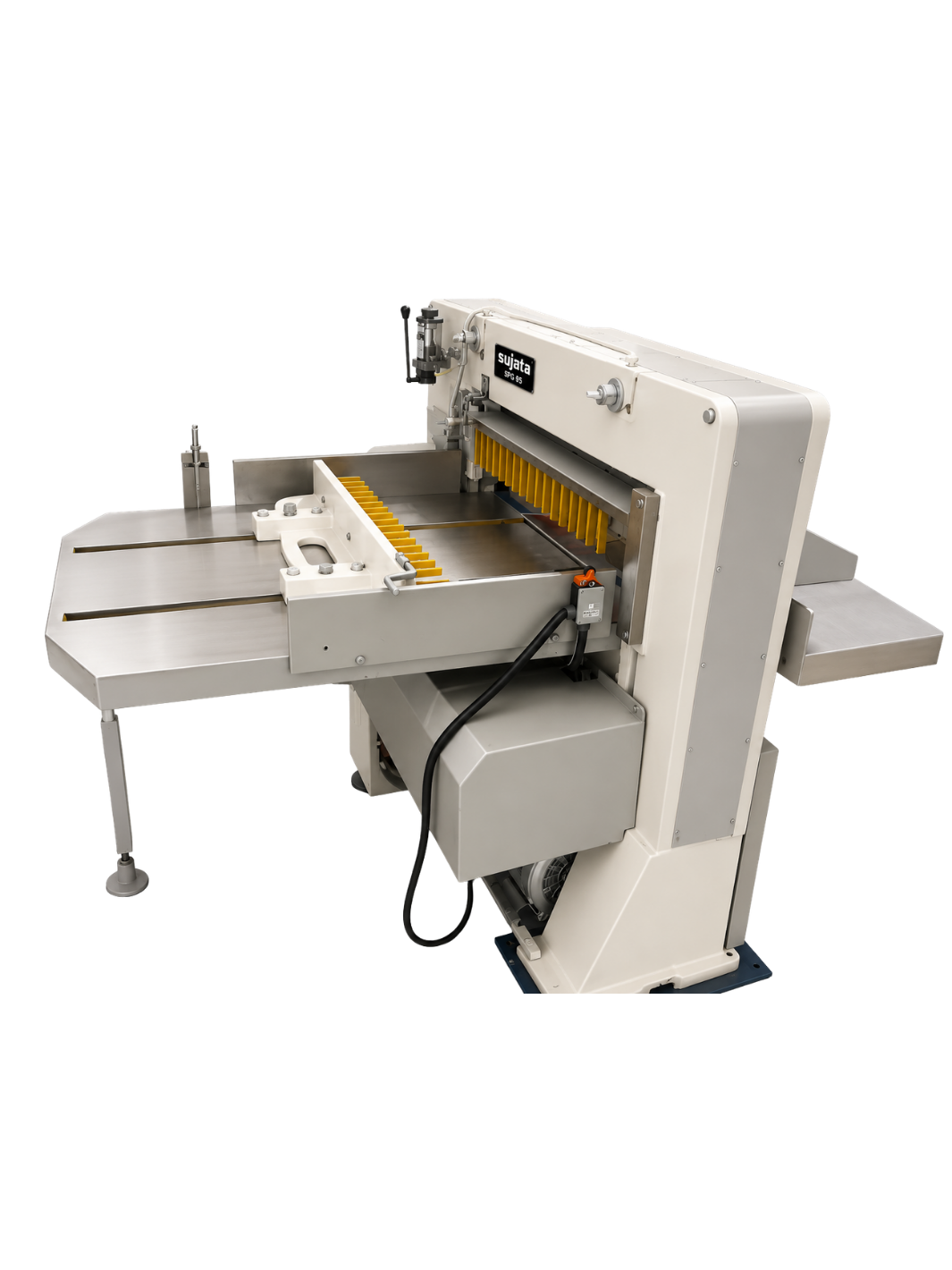

High Speed Programmable Paper Guillotine ( SPG)

Sujata programmable paper Guillotine is a Hydraulically powered gem offered in 3 latest models.Sujata SPG series is powered by our proprietary 'double press' hydraulic technology that enables double pressing or clamping action on paperboard or material being cut. It hence enables more efficient cutting on variety of applications irrespective of increasing thickness.

The new programmable paper cutting possesses advance structure, high automation, rapid cutting speed, safety and reliability. It is suitable for cutting trade mark, negotiable securities, packing and other printed materials as well as some soft materials similar to paper. Newly designed photo electric unit wide spread extended side tables are the new added feature to our SPG series of Paper Cutter.

Standard Features

Sujata's Double Press Hydraulic Technology
Best in class weight enabling higher clamping pressure than other Asian peers
High Carbon inhouse casting to deliver superior durability synonymous with the Sujata brand
Box type Design
Specially Designed Electro magnetic clutch and brake.
Latest Hydraulic Power pack with double pressure cylinder.
Infra red photo electric safety device.
Program controlled air cushion table
Stainless steel strip on front table which keeps the front bed away from rust for years
Dual Speed motor driven back gauge with separate E.M. clutch & brake mounted on lead screw
Slot closing belt is provided on main bed.
Dust free feather touch key board for smooth operation of program unit.

Programmable execution is possible either in semi-automatic or fully automatic mode

Technical data
Model	SPG 95	SPG 115	SPG 132
Cutting Width	37" (95 cm)	45" (115 cm)	52" (132 cm)
Feeding Depth	37" (95 cm)	45" (115 cm)	52" (132 cm)
Loading Height Max.	4.5"	5.5"	5.5"
Safety Clamp Pressure	66 lbs	66 lbs	66 lbs
Clamp Pressure Min	125 lbs	125 lbs	125 lbs
Clamp Pressure Max	8960 lbs	10080 lbs	10080 lbs
Back gauge Speed on Return Way	125 mm/sec	125 mm/sec	125 mm/sec
Knife Speed	40-42cycles/min	40 cycles/min	40 cycles/min
Smallest Cut Automatically Without False Plate	25 mm	25 mm	25 mm
Smallest Cut Automatically With False Plate	100 mm	100 mm	100 mm

Sujata Fully Automatic Paper Cutting Machine

Sujata Automatic Paper Guillotine Machine

Sujata Fully Automatic Paper Guillotine Machine SFG Series

Fully Automatic Paper Guillotine Machine SFG Series

Sujata Self Clamping SFG Series Paper Cutting Machine

Sujata Automatic Non Programmable Paper Cutting Machine

Sujata Automatic Notebook Cutting Machine

Sujata Fully Auto Paper Guillotine Machine

Sujata Automatic Paper Guillotine Machine

Rs. 550,000.00

Sujata High Speed Fully Auto Paper Guillotine (Self Clamp) ( SFG)

Sujata's self clamping series has double the productivity of regular semi automatic machines in the market and about four times as productive as manual cutting machines.

Sujata Automatic Paper Cutting Machine was invented and designed specifically for quality and value conscious markets of the world. SFG technology is unique to Sujata and has not been replicated by any of its competitors in the market.

Known for it's durability the machine helps printing and packaging units enjoy great savings of maintenance and repair costs over the long lifetime of Sujata SFG machine. Regular Manual and Semi Automatic Machines incur costs several times their base price over the first ten years of operation of machine, while SFG helps bring in these savings due to negligible maintenance costs.

Designed for single push operation, it is ideal for printing and packaging houses looking for a high speed paper and board cutting machine.

Sujata Fully Automatic Paper Cutting Machine is an efficient machine suitable for large & medium size printing. Binding houses as well as for Paper Mills & other Allied enterprises for paper cutting in fairly large quantities. This machine is most Economical, Reliable & Perfect for accurate precision cutting.

Standard Features

Heavy & Sturdy construction
Electro Magnetic Clutch & Brake
Two hand push button (Easy & Safe) controls
Automatic Clamping
Photo cell Safety Device & full Safe Brake for operator’s safety .
Individual Motorised back guage with Micro adjustment by hand
Measure Indicator at eye level
Extended side tables for easier paper handing & Storage
Lighting on cutting line
Centralized lubrication

Technical Data
Product Code	SFG 68/ 92	SFG107	SFG115	SFG130	SFG 165	SFG 182
Cutting width	27”/36” (680/920mm)	42” (1070 mm)	45” (1150 mm)	52” (1300 mm)	65” (1650 mm)	72” (1820 mm)
Pile Height	4”(100mm)4.1/2 (120 mm)	5” (130 mm)	5” (130 mm)	5” (130 mm)	5” (130 mm)	5” (130 mm)
Cut per minute	25-30	25-30	25-30	25-30	20-25	20-25
Power	2+1/2/3+1/2” HP	5+1/2” HP	5+1/2” HP	5+1/2” HP	7.1/2+1/2” HP	7.1/2+1/2” HP
Weight (Net)	1100/2000 Kg.	2600 Kg.	3000 Kg.	3200 Kg.	3600 Kg.	4200 Kg.

Sujata Semi Automatic Paper Cutting Machine

Sujata Semi Automatic Paper and Board Cutting Machine SSEMC

Sujata Semi Automatic Cutting SSEMC at Gujarat

Sujata Semi Automatic Cutting SSEMC at Morbi

Sujata Semi Auto Paper Guillotine Machine

Sujata Semi Auto Paper Guillotine Machine

Rs. 325,000.00

Sujata High Speed Heavy Duty Semi Automatic Paper Guillotine (Motorised Clamp)
( SSEMC )

The new Sujata High Speed Semi Automatic Paper Cutting Machine is an efficient machine suitable for large medium size printing. Packaging, Binding houses as well as for Paper Mills & other Allied enterprises for paper cutting in fairly large quantities. This machine is most Economical, Reliable, Safe & Perfect for accurate precision cutting.

Technical Data
Product Code	SSEMC26	SSEMC 36	SSEMC42	SSEMC45	SSEMC52	SSEMC60
Length of cut	33" (660mm)	36" (900mm)	42" (1060mm)	45" (1150mm)	52" (1300mm)	60" (1500 mm)
Width of cut	26" (660mm)	36" (900mm)	42" (1060mm)	45" (1150mm)	52" (1300mm)	60" (1500 mm)
Height of cut	4" (100mm)	4/1/2" (113mm)	5" (127mm)	5" (127mm)	5" (127mm)	5" (127mm)
Cut per minute	30	25	20	20	20	20
Power	1+1/2+ 1/2 HP	3+1/2+1/2HP	3+1/2+1/2 HP	3+1/2+1/2 HP	5+1/2+1/2 HP	5+1/2+ 1/2 HP
Weight (Net)	900 kg.	1600 kg.	2000 kg.	2300 kg.	2500 kg.	3100 kg.

Variant Comparative –PAPER GUILLOTINE (POPULAR SERIES)
Product Code	SSEMC	SFG	SPG
Automatic Clamp (Hydraulic)	N*	N	Y
Automatic Clamp (Mechanical)	N	Y*	N
Motorized Clamp	Y	N	N
Hand Clamp	OPTIONAL	N	N
Digital Readout	Optional	Optional
Digital Program			Y
Measure Indicator (Tape)	Y	Y	OPTIONAL-NON PROGRAM
Foot Clamp		Y	Y
Electro Magnetic & Cutting Brake	Y	Y	Y
Photo Electric Device	Y	Y	Y
Air Cushion Bed	Optional	Optional	Y
Stainless Anti Rust Strip FRONT	Y	Y	Y
Stainless Anti Rust Strip BACK	N	N	Y

SPG AVAILABLE WITHOUT PROGRAM ON DEMAND

ACCESSORIES STANDARD: 2 KNIVES 1 CUTTING STICK MULTIUSE TOOL BOX

N – NO Y-YES

Paper Guillotine Line with Feeding and Delivery

Rs. 420,000.00

Cutting Line (back the paper feed and program control paper cutter,Fetch function with automatic feeding. The feed roller can quickly separate piles of paper sheets by a set height to crawl to the working table. The paper position and height of the gripper can be detected accurately by the infrared distance security sensor, so that the whole feeding process will be accurate and efficient.

It improves efficiency, creates value for you by saving labor and enhances working accuracy.

Working table is equipped with air cushion device,the process of up and down is driven by the worm gear.The ball screw and linear guide ensure smooth and accurate movement of the table. The movement of working table is driven by the worm gear with rack and pinion. Linear guide slider positioning makes it easy to move the working table. The machine has advantages in feeding and unloading paper automatically, accurately and efficiently.It can finish load and unload clean up move of all kinds of paper cutter.

Sujata Manual Cardboard and Paper Cutting Machine

Sujata Cardboard and Paper Cutting Machine

Sujata Heavy Duty Paper Cutting Machine

Rs. 215,000.00

Sujata's Heavy Duty Manual Cutting Machine with Motor has an unparallel legacy of trust, precision and reliability. With unique 50 year history and over 30,000 deployments across the globe the simple cutting machine is synonymous with Sujata Brand. Known for its durability, simplicity and strength the machine is ideal for straight cutting cardboard, paper, duplex, millboard, hardboard among a variety of applications.

Standard Accessories

Two high quality en49 Knives
Four Runners
Double Slot Plate
Steel Gears
Steel Clutch
Best in class MNC Motor (*Three Phase)
Wooden Packing

*Single phase motors available subject to additional cost and manufacturer's discretion

Optional Accessories

Motorized (Auto) Clamping

Size (in Inches)	Motor (HP)
26	1
32	1.5
36	2
42	3
52	5

Sujata Double Hydraulic Programmable Paper Cutting Machine

Sujata Double Hydraulic Programmable Paper Cutting Machine

Rs. 1,925,000.00

Sujata Double Hydraulic High Speed Programmable Paper Guillotine ( SDHG) is powered by our Double Hydraulic Technology combining Sujata's durability with speed and efficiency.

Features:

Touch Screen: It adopts 10 inch touch screen color liquid crystal touch screen. It is equipped with imported computer controlling system. The computer can do self-diagnosis while malfunctioning, and do self-protection while wrong operation.

Double Hydraulic Device: The hydraulic system adopts the advanced technology from Germany. Equipped with combined hydraulic valve, double hydraulic controlling structure, it improves hydraulic device greatly. The hydraulic device passes CE certificate.

Double Guide Device: The paper pusher adopts double linear guide and roller ball screw, which can prolong the machine life, and can help bear the high speed paper delivering machine load.

Photo Cell: It is equipped with a photo cell safety protection device.

Over load protection device: Convenient knife changing device.

Worktable Chrome Treatment: The worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

Air Ball: Air balls are installed in the worktable. The paper sending work will be easy and accurate.

Cutting Controller: Both of the user’s hands operate the machine. It can cut paper in one Time.

Electronic Knife Lock: When the machine malfunctions, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.

Main electric components are imported from Germany, French, Switzerland etc.

Technical specifications

Parameters	Units	Values
Max cutting width	cm/inch	115/45.3
Max cutting length	cm/inch	116/45.7
Max cutting height	cm/inch	16.5/6.5
Main motor	kw	4
Net weight	KG	3500
Width of machine	cm	267
Length	cm	261
Height	cm	165
Front table length	cm	73
Table height	cm	89
Clamp pressure	Min (N)	200
Clamp pressure	Max (N)	40000
Knife thickness	cm	139x16x1.27
Smallest Cut Automatically Without False Clamp	cm/inch	3/1.2
Smallest Cut Automatically With False Clamp	cm/inch	10/3.9
Cutting speed	Cycles/min	45
Wind pump motor	KW	0.75
Paper Pusher Servo	KW	0.4

Standard Configuration

No.	Configuration	Brand	Model	Double Hydraulic
1.	Display Screen	AU	Taiwan
2.	Motherboard Chipset	AMD	America
3.	Locating Movement Motor	FUJI/ TECO	Japan/Taiwan	Locating Movement Motor	FUJI/ TECO
4.	Feed Screw	TBI	Taiwan
5.	Guide	TBI	Taiwan
6.	Bearing	NSK	Japan
7.	Switch	Schneider	French
8.	Locating Switch	Panasonic	Japan
9.	Electrical	Schneider/ Omron	French/Japan
10.	Solenoid Valve	SEVEN OCEANS	Taiwan
11.	Sealing Ring	NOK	JAPAN

Sujata Mini Double Hydraulic Programmable Paper Cutting Machine

Sujata Mini Double Hydraulic Programmable Paper Cutting Machine

Rs. 775,000.00

Sujata Mini Double Hydraulic High Speed Programmable Paper Guillotine 680 E is powered by our Double Hydraulic Technology combining Sujata's durability with speed and efficiency.
