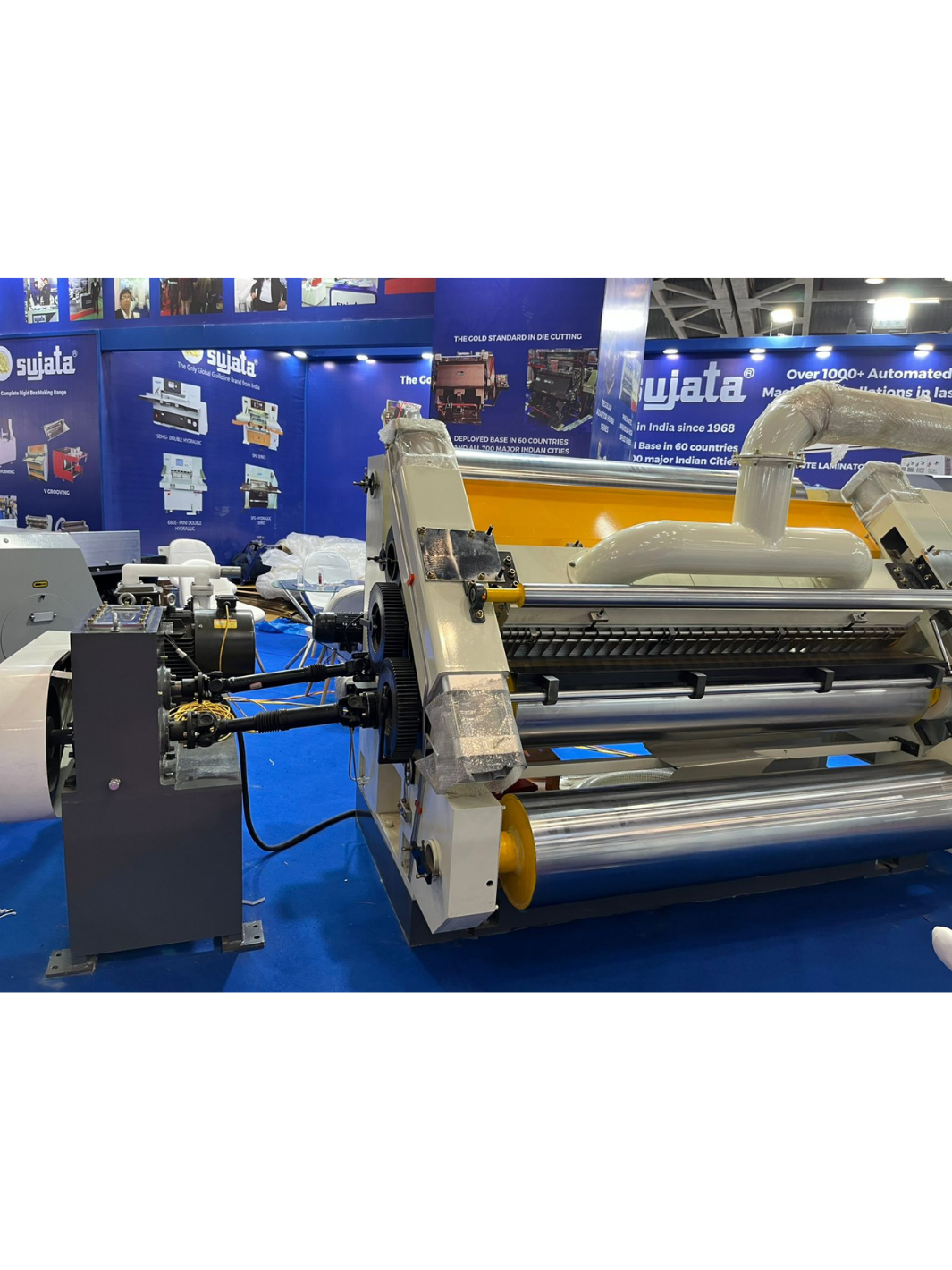

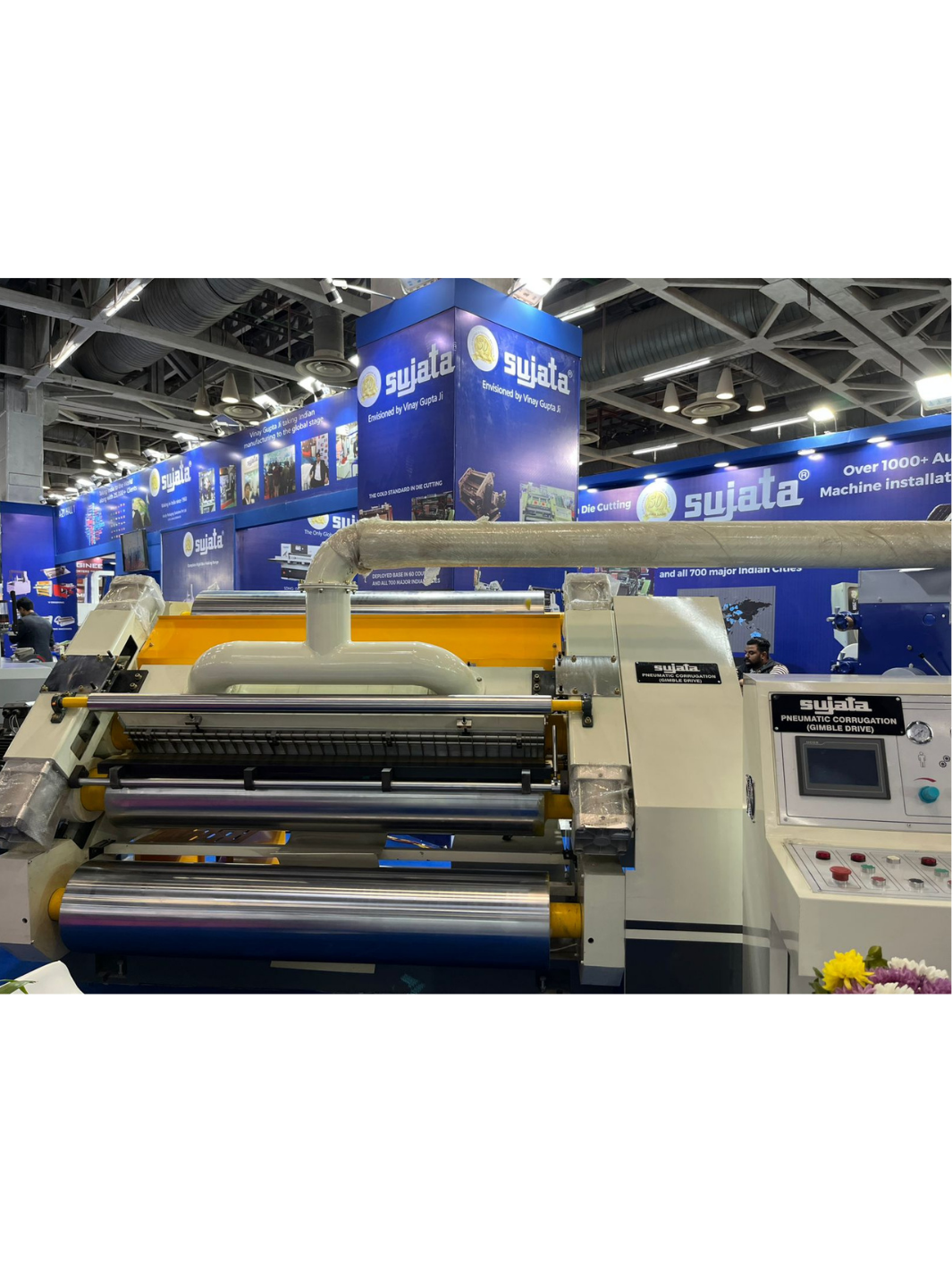

High Speed Single Facer

D 320 High Speed Cassate Type Single Facer for easy change of flute rolls

Features:

• design speed:150 m/min.
• Effective Width:1400 - 2500 mm.

Details Attributes:

• Main shocked roll: ¢ 320 mm (according to differ flute), pressure roller ¢ 365 mm, preheat roll ¢ 400 mm.
• The negative pressure design, low heat dissipation, so that pressure can be evenly core paper and attached to the corrugated roller surface, so corrugated better shape, because the pressure evenly, corrugated top better, evenly coated with glue, so one-sided corrugated fit the situation better.
• quick roll change, 15 minutes, in order to replace the Corrugated trolley trailer containing the entire set of corrugating to motor drive, into the machine, fixed on the machine base, quickly and easily complete Corrugated replacement.
• Corrugated use 48CRMO quality alloy steel, heat treatment, surface after grinding hard chrome plating or tungsten carbide processing.
• corrugating roll and pressure roll or the like using the airbag control system having high stability, but also has to control the pressure buffering effect.
• glue volume control with electric adjustment, electric, every plastic, adhesive systems can be independent when the host stops running, prevent the glue dry.
• mobile systems on the glue, in addition to easy to clean, but more conducive to maintenance and repair work.
• Simple operation control system, touch screen interface, with color drawings display simple, user-friendly.
• Built-in pre-conditioner with a spray system, temperature and moisture regulating core paper.
•  pressure roller bearings are used in high-temperature grease to ensure the bearing life, running smoothly.

SF280/320   Single Facer's parameter：

1、Working width：1600mm   1800mm   2000mm   2200mm

2、Operation direction：left or right（according to customer workshop）

3、Design speed：100-150m/min  working speed：80-120m/min

4、Tmperature range：160-200℃

5、Air source：0.4-0.9Mpa

6、Steam pressure：0.8-1.3Mpa

7、Corrugated type（A、B、C、E can be choosen）

Main instruction：

 It adopts cover suction structure, with high pressure powerful fan.Air suction and noise elimination device, air source and electrical control are concentrated in the same operating cabinet, not less than 1.5 meters away from the main machine, the operating side is completely closed and covered.Cast iron wallboard structure, wallboard thickness 130mm-150mm.

 The corrugated roller is made of 48CrMo alloy steel, which is tempered, medium frequency quenching, surface polishing, the diameter of the main corrugated roller is 280mm, and the surface hardness is above HRC58 °.Key parts of the tile roller, pressure roller bearing using  production of high temperature bearing.

 Pressure roller 292mm, surface grinding and chrome plating Cylinder control up and down movement, material for medium carbon steel no. 45, conditioning treatment (with buffer device).

  Corrugated roller, pressure roller raw materials from  special steel, corrugated roller unilateral 0.15mm on the high, pressure roller unilateral 0.075mm in the high Add limit device Use 160mm cylinder for pressing the cylinder.

 The preheating roller is 320mm seamless steel tube
